| 主要技術參數 | SPECIFICATION | UNIT | CW6163B | CW6263B | CWQ6180 | CWQ6280 | CW6180 | CW6280 | CWQ61100 | CWQ62100 | |
|
加工范圍 Capacity |
床身上最大 回轉直徑 |
Swing over bed | mm | 630 | 800 | 800 | 1000 | ||||
|
馬鞍內最大 回轉直徑 |
Swing over gap | mm | - | 800 | - | 1000 | - | 1000 | - | 1200 | |
|
橫滑板上最大 回轉直徑 |
Swing over cross slide | mm | 350 | 520 | 480 | 680 | |||||
| 最大工件長度 | Distance between centers | mm | 1500/2000/3000 | 1500/2000/3000 | 1500/2000/3000 | 1500/2000/3000 | |||||
| 床身導軌寬度 | Guideway width | mm | 550 | 550 | 600 | 600 | |||||
| 床身承重范圍 | Max load capacity | T | 3 | 3 | 4 | 4 | |||||
|
主軸 Spindle |
主軸孔徑范圍 | Spindle bore | mm | 105 | 105 | 105 | 105 | ||||
| 主軸孔徑錐度 | Spindle bore taper | 一 | Metricφ120/MT6 | Metricφ120/MT6 | Metricφ120/MT6 | Metricφ120/MT6 | |||||
| 主軸鼻端型號 | Spindle nose type | 一 | C11 | C11 | C11 | C11 | |||||
| 主軸轉速級數 | Spindle speed steps | 一 | 正轉18檔/FWD.18steps | 正轉18檔/FWD.18steps | 正轉18檔/FWD.18steps | 正轉18檔/FWD.18steps | |||||
| 主軸轉速范圍 | Spindle speed range | rpm | 7.5-1000 | 6-800 | 6-800 | 6-800 | |||||
| 卡盤規格 | Chuck | mm | φ315手動三爪/φ315 3-jawmanua | φ400手動三爪/φ400 3-jawmanual | |||||||
|
刀架 Turret |
刀架類型 | Turret/tool post | - | 4工位手動刀架/Manual turret 4 position | 4工位手動刀架/Manual turret 4 position | ||||||
| 刀具尺寸 | Tool shank size | mm | 30×30 | 30×30 | 32×32 | 32×32 | |||||
|
進給 Feed |
X軸行程 | X axis travel | mm | 320 | 420 | 420 | 520 | ||||
| 7軸行程 | Z axis travel | mm | 1350/1850/2850 | 1350/1850/2850 | 1250/1750/2750 | 1250/1750/2750 | |||||
|
X軸進給量 級數范圍 |
X axis feed grade/range | mm/r | 64/0.05-12.15 | 64/0.05-12.15 | 64/0.05-12.15 | 4/0.05-12.15 | |||||
|
Z軸進給量 級數范圍 |
Z axis feed grade/range | mm/r | 64/0.1-24.3 | 64/0.1-24.3 | 64/0.1-24.3 | 64/0.1-24.3 | |||||
|
X軸快速 進給速度 |
X axis rapid traverse | mm/min | 2300 | 2300 | 2300 | 2300 | |||||
|
Z軸快速 進給速度 |
Z axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | |||||
|
公制螺紋 種類范圍 |
Metric thread grade/range | mm | 50/1-240 | 50/1-240 | 50/1-240 | 50/1-240 | |||||
|
英制螺紋 種類范圍 |
Inch thread grade/range | T.P.I | 26/14-1 | 26/14-1 | 26/14-1 | 26/14-1 | |||||
|
模數螺紋 種類范圍 |
Module thread grade/range | mm | 53/0.5-120 | - | - | - | |||||
|
徑節螺紋 種類范圍 |
DP thread grade/range | D.P. | 24/28-1 | - | - | - | |||||
|
尾座 Tailstock |
尾座套筒直徑 | Tailstock quill diameter | mm | φ100 | φ100 | φ120 | φ120 | ||||
| 尾座套筒錐度 | Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 | |||||
| 尾座套筒行程 | Tailstock quill travel | mm | 250 | 250 | 250 | 250 | |||||
|
電機 Motor |
主軸電機 | Main spindle motor | kW | 11 | 11 | 15 | 15 | ||||
| 快速進給電機 | Rapid traverse motor | kW | 1.1 | 1.1 | 1.1 | 1.1 | |||||
| 冷卻泵電機 | Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | |||||
|
尺寸 Dimension |
寬度W×高度H | Width × Height | mm | 1400×1450 | 1550×630 | 1650×1730 | 1750×1750 | ||||
| 長度L | Length | mm | 3800/4300/5300 | 3800/4300/5300 | 4000/4500/5500 | 4000/4500/5500 | |||||
|
重量 Weight |
機器凈重 | Net weight | T | 3.8/4.2/4.9 | 3.7/4.1/4.8 | 4.0/4.5/5.2 | 3.9/4.4/5.1 | 5.0/5.4/6.1 | 4.9/5.3/6.0 | 5.3/5.7/6.4 | 5.2/5.6/6.3 |
|
敬請注意：床身回轉直徑、床身長度和馬鞍等可根據客戶的實際需要進行定制。 Please note: swing diameter, bed length and saddle gap can customize according to real work demand. |
|||||||||||

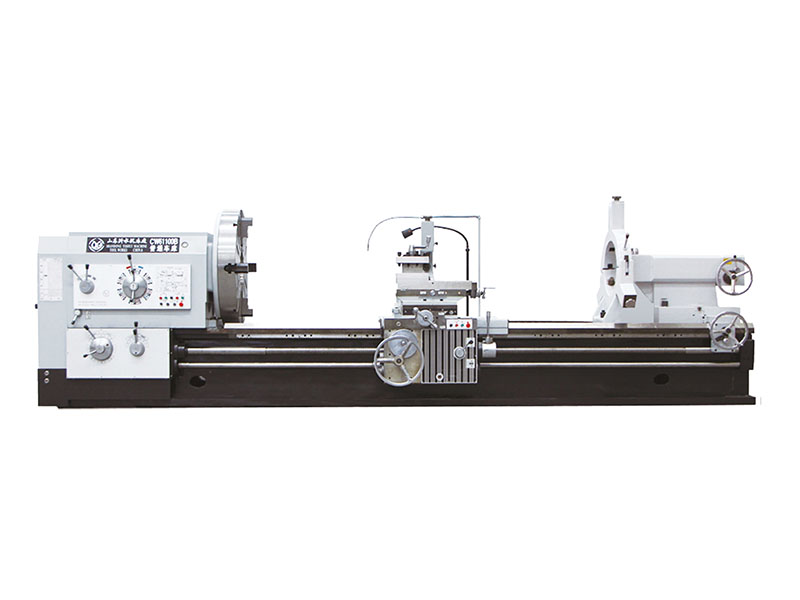

| 主要技術參數 | SPECIFICATION | UNIT | CW61100B | CW61125B | CW61140B | CW61160B | |
|
加工范圍 Capacity |
床身上最大回轉直徑 | Swing over bed | mm | 1000 | 1250 | 1400 | 1600 |
| 橫滑板上最大回轉直徑 | Swing over cross slide | mm | 610 | 850 | 1000 | 1200 | |
| 最大工件長度 | Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
| 床身導軌寬度 | Guideway width | mm | 755 | 755 | 755 | 755 | |
| 床身承重范圍 | Max,load capacity | T | 6 | 6 | 6 | 6 | |
|
主軸 Spindle |
主軸孔徑范圍 | Spindle bore | mm | 130 | 130 | 130 | 130 |
| 主軸孔徑錐度 | Spindle bore taper | - | Metricφ140/MT6 | Metricφ140/MT6 | Metricφ140/MT6 | Metricφ140/MT6 | |
| 主軸鼻端型號 | Spindle nose type | - | A2-15 | A2-15 | A2-15 | A2-15 | |
| 主軸轉速級數 | Spindle speed steps | - | 正轉21檔/FWD.21steps | 正轉21檔/FWD.21steps | 正轉21檔/FWD.21steps | 正轉21檔/FWD.21steps | |
| 主軸轉速范圍 | Spindle speed range | rpm | 3.15-315 | 3.15-315 | 3.15-315 | 3.15-315 | |
| 卡盤規格 | Chuck | mm | φ1000手動四爪/φ1000 4-jaw manual | ||||
|
刀架 Turret |
刀架類型 | Turret/tool post | - | 4工位手動刀架/Manual turret 4 position | |||
| 刀具尺寸 | Tool shank size | mm | 45×45 | 45×45 | 45×45 | 45×45 | |
|
進給 Feed |
X軸行程 | X axis travel | mm | 520 | 620 | 620 | 620 |
| Z軸行程 | Z axis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | |
| X軸進給量級數范圍 | X axis feed grade/range | mm/r | 56/0.05-6 | 56/0.05-6 | 56/0.05-6 | 56/0.05-6 | |
| Z軸進給量級數范圍 | Z axis feed grade/range | mm/r | 56/0.1-12 | 56/0.1-12 | 56/0.1-12 | 56/0.1-12 | |
| X軸快速進給速度 | X axis rapid traverse | mm/min | 1870 | 1870 | 1870 | 1870 | |
| Z軸快速進給速度 | Z axis rapid traverse | mm/min | 3740 | 3740 | 3740 | 3740 | |
| 公制螺紋種類范圍 | Metric thread grade/range | mm | 44/1-120 | 44/1-120 | 44/1-120 | 44/1-120 | |
| 英制螺紋種類范圍 | Inch thread grade/range | T.P.I | 31/28-3/8 | 31/28-3/8 | 31/28-3/8 | 31/28-3/8 | |
| 模數螺紋種類范圍 | Module thread grade/range | mm | 45/0.5-60 | - | - | - | |
| 徑節螺紋種類范圍 | DP thread grade/range | D.P. | 30/56-1 | - | - | - | |
|
尾座 Tailstock |
尾座套筒直徑 | Tailstock quill diameter | mm | φ160 | φ160 | φ160 | φ160 |
| 尾座套筒錐度 | Tailstock guill taper | - | MT6 | MT6 | MT6 | MT6 | |
| 尾座套筒行程 | Tailstock quill travel | mm | 300 | 300 | 300 | 300 | |
|
電機 Motor |
主軸電機 | Main spindle motor | kW | 22 | 22 | 22 | 22 |
| 快速進給電機 | Rapid traverse motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | |
| 冷卻泵電機 | Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | |
|
尺寸 Dimension |
寬度W×高度H | Width × Height | mm | 2000×1800 | 2000×1950 | 2250×2050 | 2250×2150 |
| 長度L | Length | mm | 4600/6100 | 4600/6100 | 4600/6100 | 4600/6100 | |
|
重量 Weight |
機器凈重 | Net weight | T | 9.6/10.7 | 10.6/11.7 | 11.2/12.3 | 13.1/14.0 |
|
敬請注意：床身回轉直徑、床身長度和馬鞍等可根據客戶的實際需要進行定制。 Please note: swing diameter, bed length and saddle gap can customize according to real work demand. |
|||||||
