| 主要技術參數 | SPECIFICATION | UNT | QK1325 | CK1327C | |||
| 手動換擋 Manual | 液壓換擋 HYD | 手動換擋 Manual | 液壓換擋 HYD | ||||
|
加工范圍 Capacity |
床身上最大回轉直徑 | Swing over bed | mm | 800-1000 | 800-1000 | ||
| 橫滑板上最大回轉直徑 | Swing over cross slide | mm | 480-680 | 480-680 | |||
| 最大工件長度 | Distance between centers | mm | 1000-6000 | 1000-6000 | |||

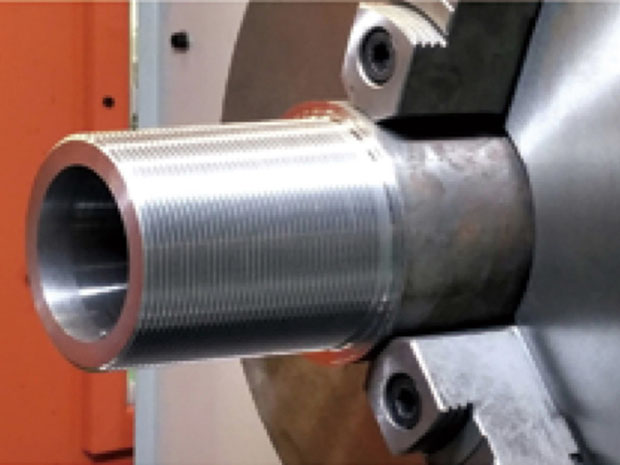

| 加工管螺紋直徑范圍 | Pipe threading range | mm | 50-250 | 50-270 | |||
| 床身導軌寬度 | Guideway width | mm | 600 | 600 | |||
| 床身承重范圍 | Max. load capacity | T | 4 | 4 | |||
|
主軸 Spindle |
主軸孔徑范圍 | Spindle bore | mm | 255 | 280 | ||
| 主軸轉速級數 | Spindle speed steps | - | 4檔變頻/VF.4steps | 4檔液壓/HYD.4steps | 4檔變頻/VF.4steps | 4檔液壓/HYD.4steps | |
| 主軸轉速范圍 | Spindle speed range | rpm | 20×420 | 20×420 | |||
| 卡盤規格 | Chuck | mm | φ630四爪單動 | φ680四爪單動 | |||
|
刀架 Turret |
刀架類型 | Turret/tool post | - | 4工位電動刀架/NC turret 4 position | 4工位電動刀架/NC turret 4 position | ||
| 刀具尺寸 | Tool shank size | mm | 40×40 | 40×40 | |||
|
進給 Feed |
X軸行程 | X axis travel | mm | 420/500 | 420/500 | ||
| Z軸行程 | Z axis travel | mm | 1000-6000 | 1000-6000 | |||
| X軸快速進給速度 | X axis rapid traverse | mm/min | 4000 | 4000 | |||
| Z軸快速進給速度 | Z axis rapid traverse | mm/min | 6000 | 6000 | |||
|
尾座 Tailstock |
尾座套筒直徑 | Tailstock quill diameter | mm | φ120 | φ120 | ||
| 尾座套筒錐度 | Tailstock quill taper | - | MT6 | MT6 | |||
| 尾座套筒行程 | Tailstock quill travel | mm | 250 | 250 | |||
|
電機 Motor |
主軸電機 | Main spindle motor | kW | 15 | 15 | ||
| 冷卻泵電機 | Coolant pump motor | kW | 0.25 | 0.25 | |||
|
尺寸 Dimension |
寬度W×高度H | Width × Height | mm | 1930×1900 | 1930×1900 | ||
| 長 度 L | Length | mm | 3600-8600 | 3600-8600 | |||
|
重量 Weight |
機器凈重 | Net weight | T | 6-9.5 | 6.2-9.7 | ||
|
敬請注意：床身長度可根據客戶的實際需要進行定制；該頁面數控管螺紋車床可以定制實現C軸分度功能的全伺服主軸直拉結構的車削中心（車銑復合）。 Please note: machine bed length can customize according to real work demand, machine on this page can choose servo motor direct driving structure turning center with C axis. |
|||||||
