| 主要技術參數 | SPECIFICATION | UNIT | QK1313 | QK1319 | QK1322 | |||
|
手動換檔 Manua |
手動換檔 Manua |
液壓換檔 HYD |
手動換檔 Manual |
手動換檔 Manual |
||||
|
加工范圍 Capacity |
床身上最大回轉直徑 | Swing over bed | mm | 630/800 | 630/800 | 630/800 | ||
| 橫滑板上最大回轉直徑 | Swing over cross slide | mm | 340/520 | 340/520 | 340/520 | |||
| 最大工件長度 | Distance between centers | mm | 1000-6000 | 1000-6000 | 1000-6000 | |||
| 加工管螺紋直徑范圍 | Pipe threading range | mm | 30-126 | 50-193 | 50-220 | |||
| 床身導軌寬度 | Guideway width | mm | 550 | 550 | 550 | |||
| 床身承重范圍 | Max. load capacity | T | 3 | 3 | 3 | |||
|
主軸 Spindle |
主軸孔徑范圍 | Spindle bore | mm | 130 | 206 | 225 | ||
| 主軸轉速級數 | Spindle speed steps | - |
3檔變頻/ VF.3steps |
4檔變頻/ VF.4steps |
4檔液壓/ HYD.4steps |
4檔變頻/ VF.4steps |
4檔液壓/ HYD.4steps |
|
| 主軸轉速范圍 | Spindle speed range | rpm | 30-800 | 20-500 | 20-500 | |||

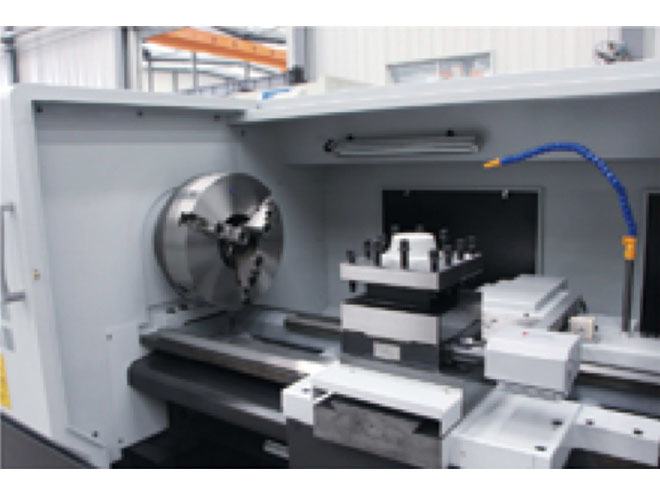

| 卡盤規格 | Chuck | mm |
φ400手動三爪/ φ400 3-jaw manual |
φ500手動三爪/ φ500 3-jaw manual |
φ500手動三爪/ φ500 3-jaw manual |
|||
|

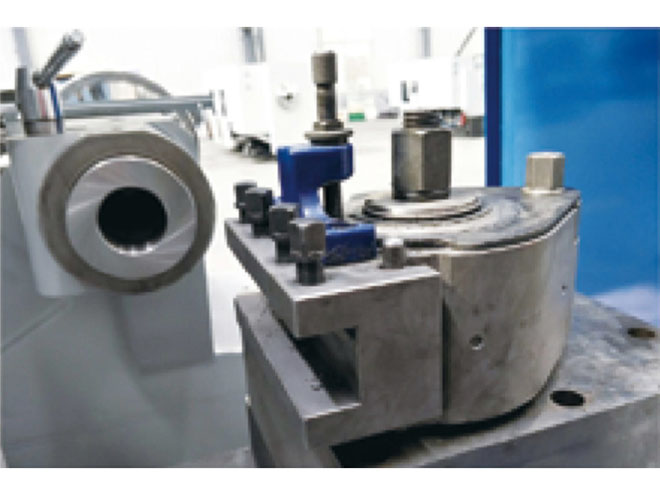

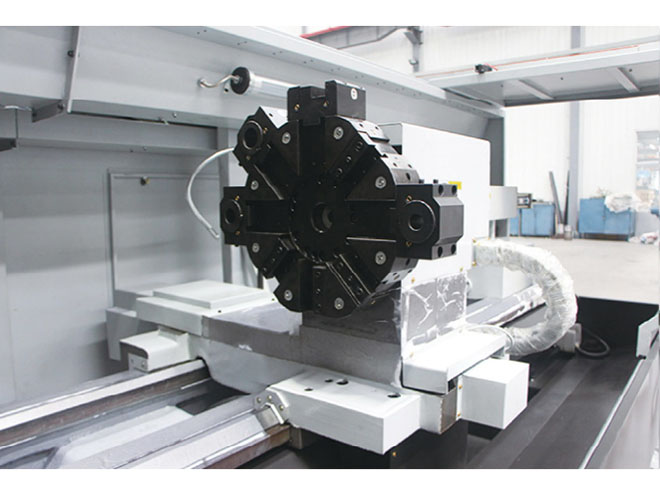

刀架 Turret |
刀架類型 | Turret/tool post | - |
4工位電動刀架/ NC turret 4 position |
4工位電動刀架/ NC turret 4 position |
4工位電動刀架/ NC turret 4 position |
||
| 刀具尺寸 | Tool shank size | mm | 32×32 | 32×32 | 32×32 | |||
|
進給 Feed |
X軸行程 | X axis travel | mm | 340/420 | 340/420 | 340/420 | ||
| Z軸行程 | Z axis travel | mm | 1000-6000 | 1000-6000 | 1000-6000 | |||
| X軸快速進給速度 | X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | |||
| Z軸快速進給速度 | Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | |||
|
尾座 Tailstock |
尾座套筒直徑 | Tailstock quill diameter | mm | φ100 | φ100 | φ100 | ||
| 尾座套筒錐度 | Tailstock quill taper | - | MT6 | MT6 | MT6 | |||
| 尾座套筒行程 | Tailstock quill travel | mm | 250 | 250 | 250 | |||
|
電機 Motor |
主軸電機 | Main spindle motor | kW | 11 | 11 | 11 | ||
| 冷卻泵電機 | Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | |||
|
尺寸 Dimension |
寬度W×高度H | Width × Height | mm | 1800×1850 | 1880×1850 | 1880×1850 | ||
| 長度L | Length | mm | 3000/8300 | 3000/8300 | 3000/8300 | |||
|
重量 Weight |
機器凈重 | Net weight | T | 4-8 | 4.6-8.6 | 4.7-8.7 | ||
|
敬請注意：床身長度可根據客戶的實際需要進行定制；該頁面數控管螺紋車床可以定制實現C軸分度功能的全伺服主軸直拉結構的車削中心（車銑復合）。 Please note: machine bed length can customize according to real work demand, machine on this page can choose servo motor direct driving structure turning center with C axis. |
||||||||
