| 主要技術參數 | SPECIFICATION | UNIT | CK61100 | CK61125 | CK61140 | CK61160 | |
|
加工范圍 Capacity |
床身上最大回轉直徑 | Swing over bed | mm | 1000 | 1250 | 1400 | 1600 |
| 橫滑板上最大回轉直徑 | Swing over cross slide | mm | 610 | 850 | 1000 | 1200 | |
| 最大工件長度 | Distance between centers | mm | 1500-10000 | 1500-10000 | 1500-10000 | 1500-10000 | |
| 床身導軌寬度 | Guideway width | mm | 755 | 755 | 755 | 755 | |
| 床身承重范圍 | Max. load capacity | T | 6 | 6 | 6 | 6 | |
|
主軸 Spindle |

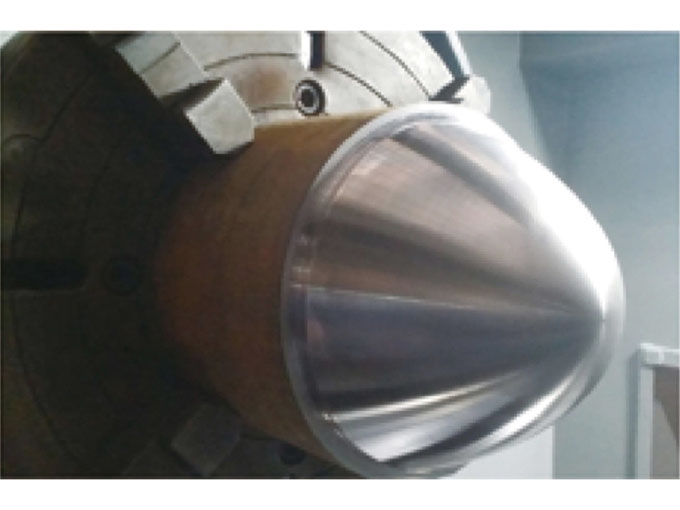

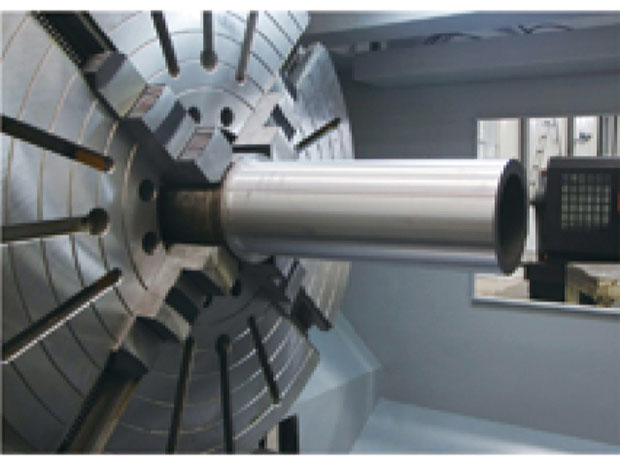

主軸孔徑范圍 | Spindle bore | mm | 30 | 130 | 130 | 130 |
| 主軸孔徑銓 | Spindle bore taper | - | Metricφ140/MT6 | Metricφ140/MT6 | Metricφ140/MT6 | Metricφ140/MT6 | |
| 主軸鼻端型號 | Spindle nose type | - | A2-15 | A2-15 | A2-1 | A2-15 | |
| 主軸轉速級數 | Spindle speed steps | - | 4檔變頻/VF.4steps/4檔液壓/HYD.4STEPS | 4檔變頻/VF.4steps/4檔液壓/HYD.4STEPS | |||
| 主軸轉速范圍 | Spindle speed range | rpm | 4-3004-300 | 4-3004-300 | |||
| 卡盤規格 | Chuck | mm | φ1000手動四爪/φ1000 4-jaw manual | 1000 | |||
|
刀架 Turret |

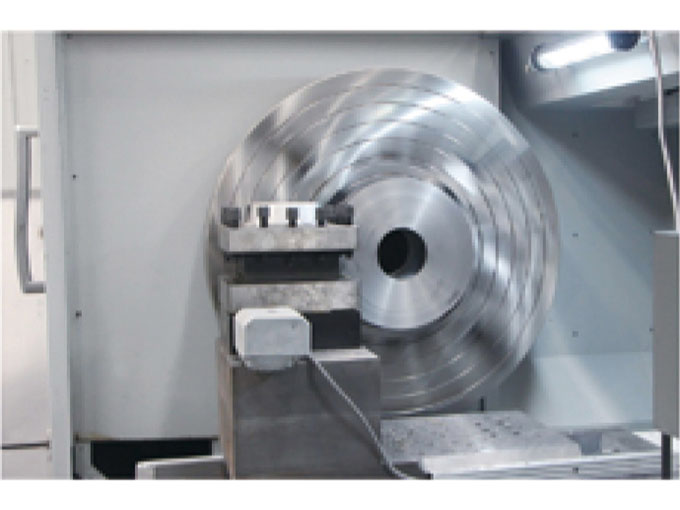

刀架類型 | Turret/tool post | - | 4工位電動刀架/NC turret 4 position | 4工位電動刀架/NC turret 4 nosition | ||
| 刀具尺寸 | Tool shank size | mm | 40×40 | 40×40 | 40×40 | 40×40 | |
|
進給 Feed |
X軸行程 | X axis travel | mm | 520 | 620 | 720 | 720 |
| Z軸行程 | Z axis travel | mm | 1250-9750 | 1250-9750 | 1250-9750 | 1250-9750 | |
| X軸快速進給速度 | X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | |
| Z軸快速進給速度 | Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 | |
|
尾座 Tailstock |
尾座套筒直徑 | Tailstock quill diameter | mm | φ160/φ260 | φ160/φ260 | φ160/φ260 | φ160/φ260 |
| 尾座套筒錐度 | Tailstock quill taper | - | MT6/公制80 | MT6/公制80 | MT6/公制80 | MT6/公制80 | |
| 尾座套筒行程 | Tailstock quill travel | mm | 300 | 300 | 300 | 300 | |
|
電機 Motor |
主軸電機 | Main spindle motor | kW | 22/30/37 | 22/30/37 | 22/30/37 | 22/30/37 |
| 冷卻泵電機 | Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | 0.25 | |
|
尺寸 Dimension |
寬度W×高度H | Width × Height | mm | 2100×2100 | 2250×2300 | 2350×2450 | 2350×2600 |
| 長度 L | Length | mm | 5000-14000 | 5000-14000 | 5000-14000 | 5000-14000 | |
|
重量 Weight |
機器凈重 | Net weight | T | 10-19 | 11-20 | 12-21 | 13-22 |
|
敬請注意：重型數控車床中心距3000mm以上的床身長度可根據客戶的實際需要進行定制。 Please note: machine bed length of heavy duty cnc lathe can customize according to real work demand. |
|||||||
